In high-end residential developments and large-scale commercial builds, precision is not just a preference—it is a strict requirement. An inaccurate measurement for a single entry point can lead to cascading delays, compromised security, and significant material waste. Whether you are an architect detailing a minimalist luxury villa or a project manager overseeing a multi-unit complex, understanding exactly how to measure a door and how to measure for a storm door is critical to keeping your construction timeline on track.
As a premier provider of One-Stop Building Project Solutions, George Homes understands the intricate coordination required between global procurement and on-site execution. This comprehensive guide provides the exact methodologies used by industry professionals to ensure flawless factory-to-site integration.
Why Precise Door Measurements Matter in Building Projects
For B2B contractors and developers, a door is never just a door—it is a component that must seamlessly integrate with surrounding structures.
A miscalculated rough opening or a failure to account for floor clearance can disrupt subsequent installations. For instance, if the door frame is measured without considering the final thickness of the Flooring & Staircase or the underlayment for Tile and Marble & Granite, the door will drag, requiring costly on-site modifications. Furthermore, accurate data is non-negotiable for custom manufacturing. Factories rely on exact dimensions to produce Doors & Windows that meet tight acoustic, thermal, and security tolerances.
How to Measure a Door (Standard Interior & Exterior)
When replacing an existing door slab or installing a pre-hung unit into a rough opening, follow these standardized steps to guarantee a precise fit.
Step 1: Measure the Door Width (Slab vs. Rough Opening)
If you are replacing just the door slab (the moving part), measure the width of the existing door.
- The Industry Standard: Measure the width in three locations: the top, the middle, and the bottom.
- Always use the smallest of the three measurements. Buildings settle, and frames warp; relying on a single top measurement can result in a door that binds at the bottom.If you are measuring for a pre-hung door (which includes the frame), measure the “Rough Opening” (the distance between the structural wall studs).
Step 2: Measure the Door Height
Measure the height from the threshold (or the finished floor) to the underside of the top jamb (header).
- Take two measurements: one on the far left side and one on the far right side.
- Record the longest measurement if you are ordering a slab, but always account for the specific floor clearance required for your interior finishings.
Step 3: Measure the Door Thickness
The thickness determines the type of hardware and locksets you can install. Open the door and run your tape measure across the edge.
- Standard interior doors are typically 1 3/8 inches thick.
- Standard exterior doors are generally 1 3/4 inches thick to accommodate insulation and heavier security hardware.
Step 4: Measure the Jamb Width (Frame Depth)
To ensure the door frame sits flush with your interior walls, measure the thickness of the wall. Measure from the backside of the interior trim to the backside of the exterior trim. This ensures your Doors & Windows integrate cleanly with the surrounding drywall and exterior cladding.

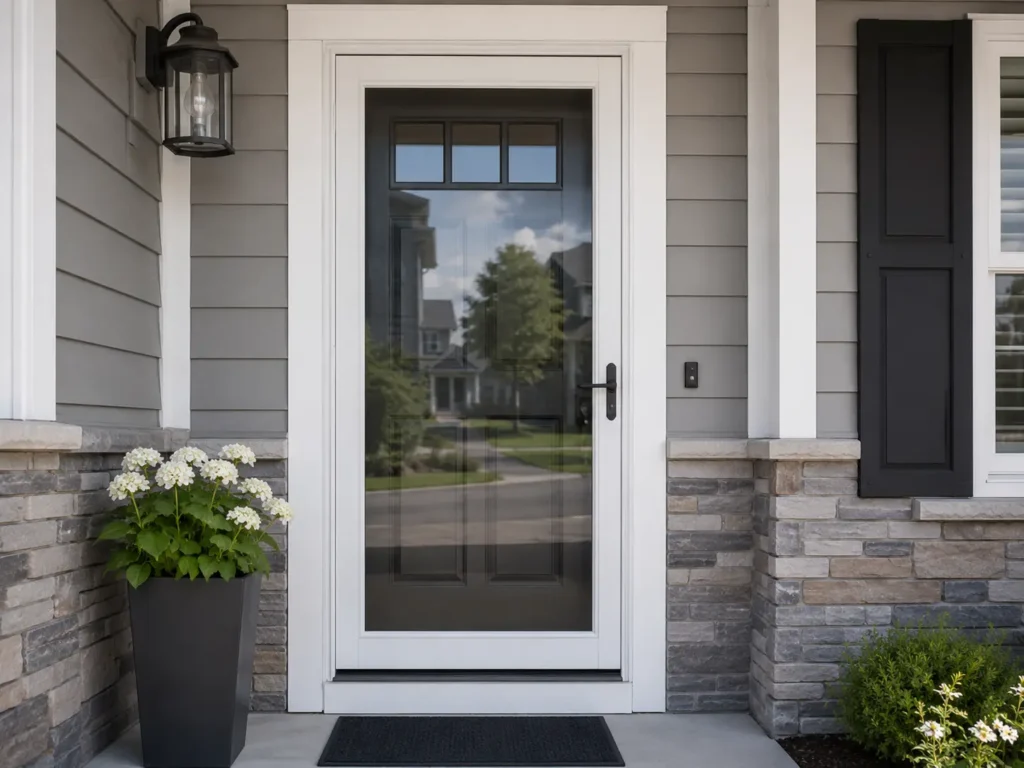

How to Measure for a Storm Door (Specific Requirements)
Storm doors require a completely different approach. You are not measuring the door slab or the rough opening; you are measuring the exterior mounting surface (usually the exterior brickmould or trim) where the storm door framework will be attached.

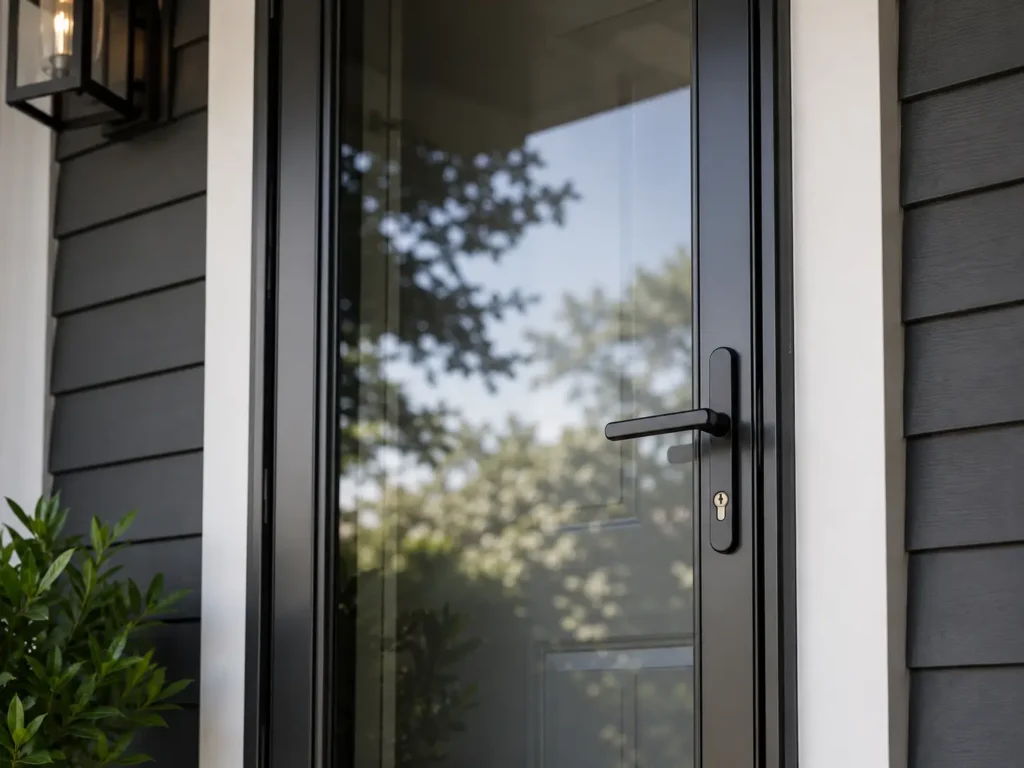

Step 1: Check for Obstructions & Hardware Clearance
Before measuring, inspect the existing exterior door. Ensure that the primary door’s exterior handle, smart lock, or doorbell will not interfere with the storm door’s glass panels or its own locking mechanism.
Step 2: Measure the Opening Width
Measure the distance between the inside faces of the exterior trim (brickmould).
- Measure horizontally at the top, middle, and bottom of the opening.
- Record the smallest dimension. This is the critical width for your storm door frame.
Step 3: Measure the Opening Height
Measure from the top of the door sill (where the storm door will rest) to the underside of the top exterior trim (header).
- Measure vertically on both the left and right sides of the opening.
- Record the smallest measurement to ensure the storm door frame can fit into the opening without binding.
Step 4: Verify the Mounting Surface (Z-Bar Clearance)
A storm door mounts via a metal frame known as a Z-bar. You must verify that your exterior trim is completely flat and at least 1 inch wide across the top and both sides to provide a secure mounting surface for the screws.
What Measurement Data to Provide to Your Designer or Supplier
To ensure your factory supplier or in-house designer can accurately process your order without back-and-forth delays, you must provide a standardized set of data. Always submit the following information for every door schedule:
- Rough Opening (R.O.) Dimensions: The exact width and height of the structural opening (Stud-to-Stud). This is the most critical data for pre-hung doors.
- Net Frame Size (or Outer Frame Dimension): The exact outside dimensions of the door frame itself (usually 1/2 inch to 3/4 inch smaller than the R.O. to allow for shimming).
- Wall Thickness (Jamb Depth): Ensure you include the thickness of the drywall and any exterior sheathing so the factory can mill the jamb to sit perfectly flush.
- Slab Dimensions (Width x Height x Thickness): If you are only ordering door slabs, provide the exact dimensions of the door panel.
- Door Handing and Swing Direction: Clearly state if the door is In-Swing or Out-Swing, and Left-Hand or Right-Hand. (e.g., “Left-Hand In-Swing”).
- Floor Clearance Requirements: Specify the thickness of the final flooring material so the factory can undercut the doors accordingly.
Standard Door vs. Storm Door Measurements
To clarify the distinct differences in procurement requirements, refer to this quick comparative data table:
| Measurement Metric | Standard Pre-Hung Door | Storm Door |
| Measurement Target | Rough Opening (Stud to Stud) | Exterior Trim (Brickmould to Brickmould) |
| Crucial Width Value | Shortest horizontal distance | Shortest horizontal distance inside trim |
| Height Benchmark | Finished Floor to Header Stud | Exterior Sill to Bottom of Top Trim |
| Mounting Requirement | Flush with interior/exterior wall depth | Minimum 1″ flat exterior trim surface |
| Hardware Clearance | Internal hinge and latch spacing | Must clear primary door’s exterior handle |
Essential Tools for Accurate Measurement
Before taking any dimensions, ensure your on-site team is equipped with the correct commercial-grade tools. Relying on sub-standard equipment is a common cause of costly measurement errors.
- Heavy-Duty Steel Tape Measure: A 25-foot (or 8-meter) rigid tape measure is ideal to prevent bending over long spans.
- Digital or Bubble Level: Essential for checking if the framing is plumb (perfectly vertical) and level (perfectly horizontal).
- Framing Square: Used to verify that the corners of the rough opening are exactly 90 degrees.
- Caliper (Optional but recommended): For highly precise measurements of door thickness and hinge mortises.
- Notepad or Digital Tablet: For immediate, clear documentation of Width x Height x Thickness.
Common Measurement Mistakes
Even seasoned professionals can overlook minor details that derail an installation:
- Ignoring Future Finishes: Measuring to a subfloor without calculating the added height of luxury Flooring & Staircase materials or thick carpets.
- Assuming Squareness: Failing to check if the opening is “out of plumb.” If the frame leans, a perfectly square door will not close properly.
- Mixing Up Left/Right Handing: Not documenting the required swing direction (in-swing vs. out-swing, left-hand vs. right-hand reverse) when taking dimensions.
